AWS VOD Streaming - Upload Video to AWS S3

AWS VOD Streaming - Upload Video to AWS S3

In this tutorial, we'll implement the first part of workflow - video upload in AWS S3 and data store in DynamoDB.

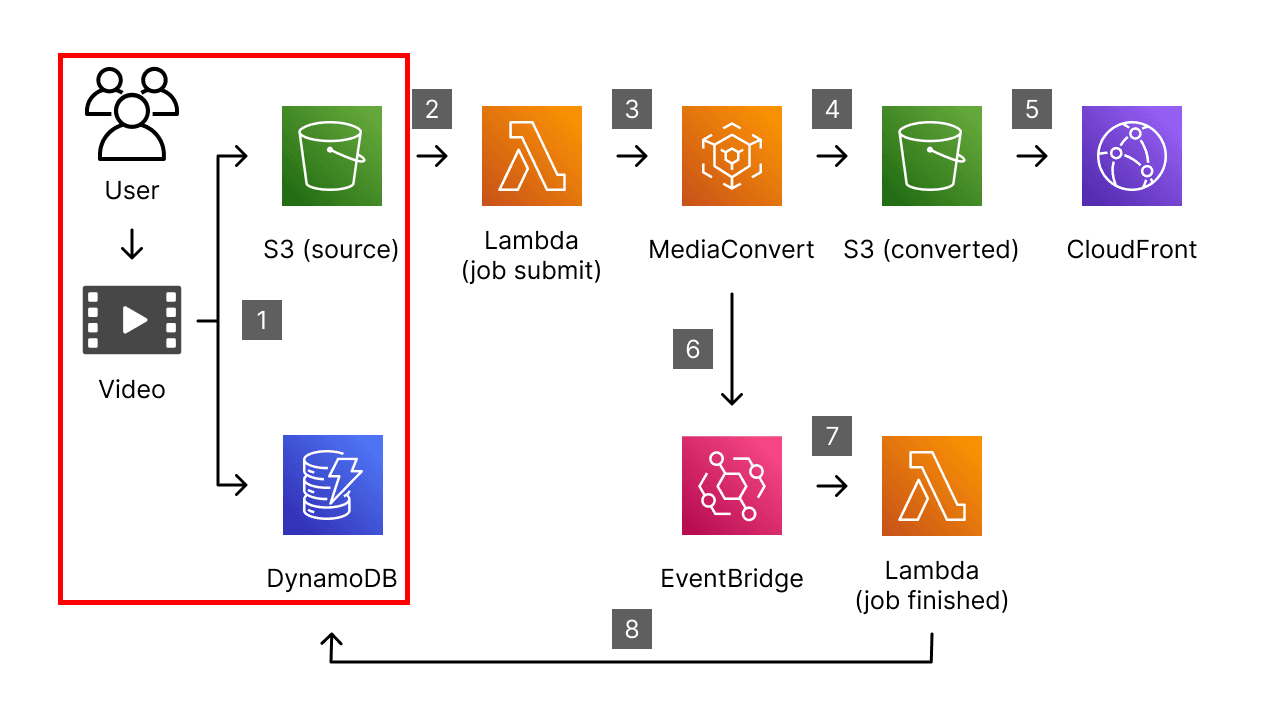

Workflow of VOD streaming
Workflow of VOD streaming

What we're going to achieve is allowing users of our app to upload video into our S3 bucket, so that it can be shared to users. You can think of this as streaming services like Youtube or Vimeo.

There are couple of considerations to make this work. First, uploading video is not as same as uploading image. Since videos are much larger than images, it takes long to be finished and therefore more vulnerable to network issues. So we need an appropriate method to handle video upload.

Another consideration is that subjects of uploading video are users of our app, not ourselves. Therefore we need to give them an authority to access our S3 bucket in a secure way.

To solve these problems, We'll use combination of methods called Multipart Upload and Presigned URL.

Multipart Upload

Multipart upload allows user to upload a single object as a set of parts. Each part is a contiguous portion of the object's data. These object parts can be uploaded independently in any order.

For object over 100MB, AWS recommends using multipart upload instead of uploading the object in a single operation, since smaller part size minimizes the impact of restarting a failed upload due to a network issue.

Multipart upload is a three-step process:

  1. Initiate the multipart upload
  2. Upload the object parts
  3. Complete the multipart upload after uploading all the parts

Presigned URL

A presigned url gives you access to the object identified in the url, provided that the creator of the presigned url has permissions to access that object.

In AWS S3, all objects and buckets by default are private. However, because of security issues, we can't give AWS credientials or permissions directly to user. Instead, we create presigned url from server and send it to user when they request. To do so, user can upload the object using presigned url, without having credentials.

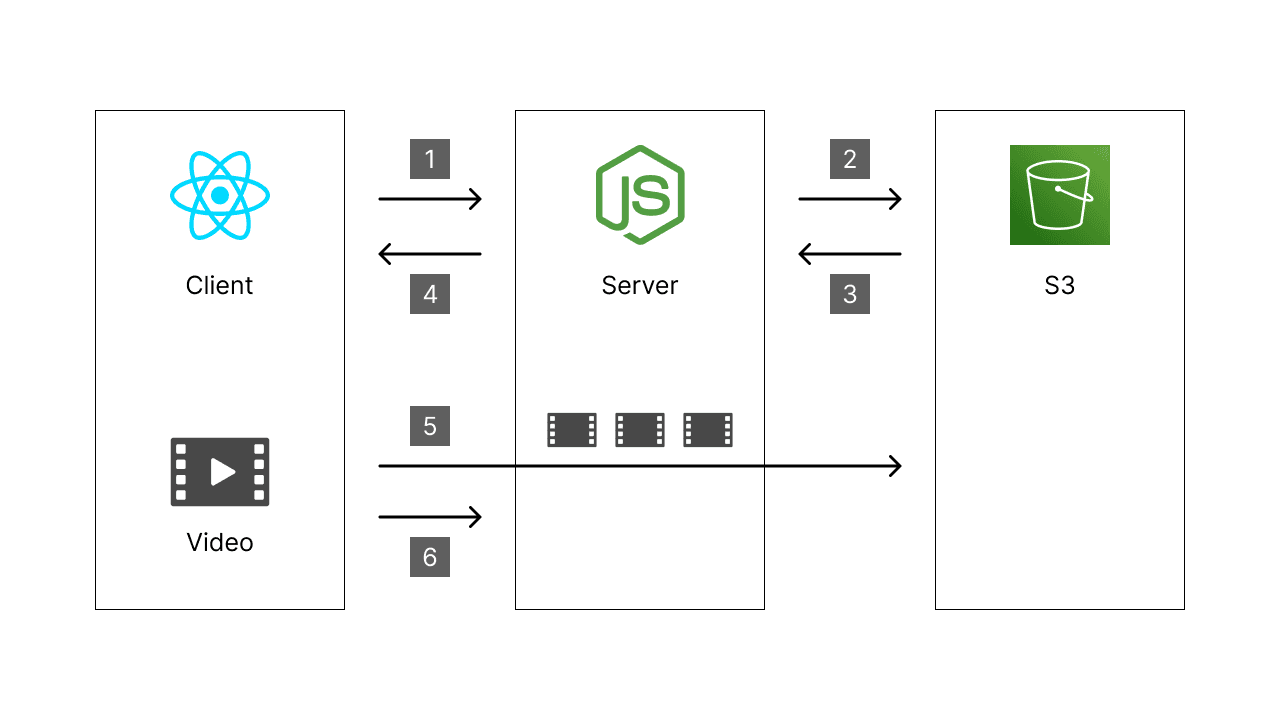

The workflow of video upload with presigned url will be like below:

upload-workflow
  1. Client requests to server for presigned url
  2. Server which has credentials of S3 requests presigned url
  3. AWS returns presigned url
  4. Server sends presigned url to client
  5. Client starts multipart upload of video to S3 with presigned url
  6. When upload is finished, client informs server that upload is finished

Another advantage of this method is that we can reduce traffic since video file is uploaded directly to S3 instead of passing through server.

Implementation

Combining the process of these two method, the final upload workflow looks like this:

  1. Initiate the multipart upload
  2. Create presigned urls for each parts from server and send them to client
  3. Upload the object parts with presigned url
  4. Complete the multipart upload

AWS Configuration

Before we begin, we need to create a AWS S3 bucket and DynamoDB table. Then we should configure it so we can use it from server.

S3 Bucket (Source)

This is where we store all the uploaded videos from client. Later we'll also create another bucket for converted videos.

  1. Go to AWS S3 console and click Create bucket.
  2. Enter a bucket name to something unique (eg. "aws-vod-streaming-source").

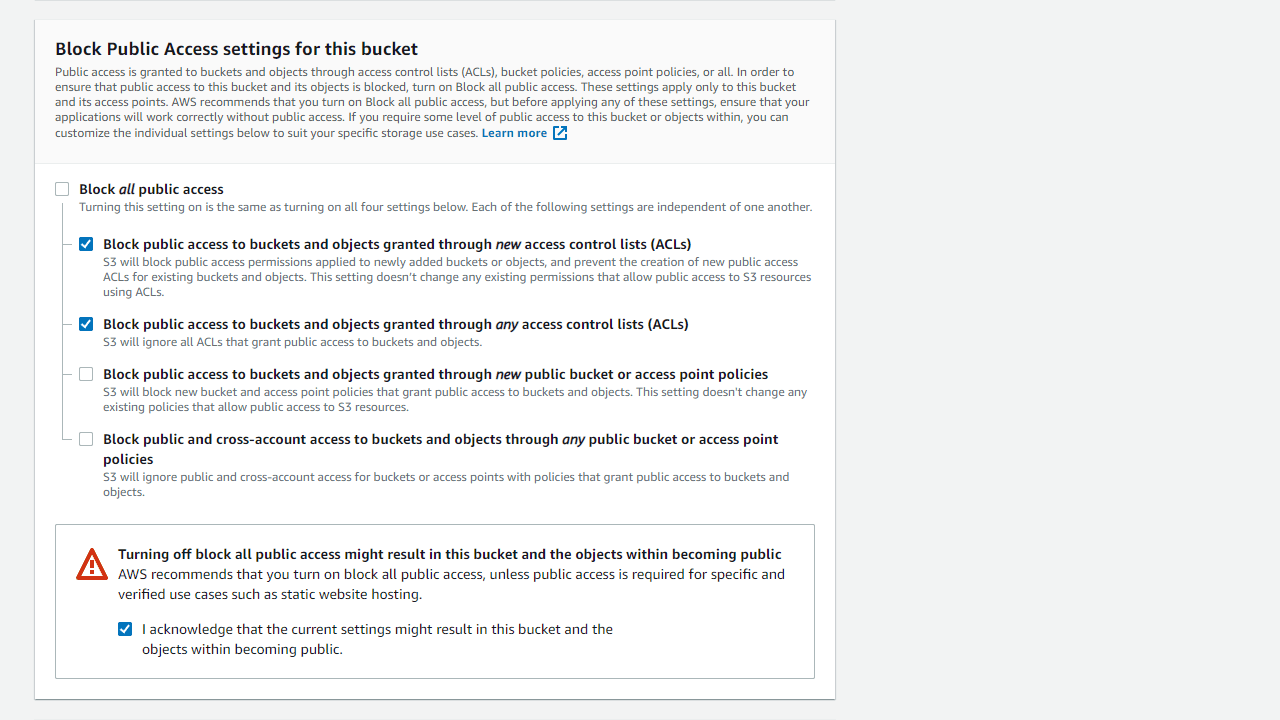

  3. Set the public access like below.
create-bucket

After creating bucket, configure Bucket policy so that it allows public access. Go to Permissions tab of created bucket and paste following json config to Bucket policy.

Bucket-Policy.json
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "Statement1",
      "Effect": "Allow",
      "Principal": "*",
      "Action": [
        "s3:GetObject",
      ],
      "Resource": "arn:aws:s3:::aws-vod-streaming-source/*"
    }
  ]
}

We want this behavior to allow users to watch the video contents they uploaded. In the final process, we will deliver converted videos instead of source video. But while the converting job is progressing, source video will be shown to users.

We also need to configure the CORS settings to make video contents accessible from client domain. PUT method also need to be allowed since the file upload is directly from client side through presigned url.

CORS.json
[
  {
    "AllowedHeaders": [
      "*"
    ],
    "AllowedMethods": [
      "GET",
      "PUT"
    ],
    "AllowedOrigins": [
      "http://localhost:3000"
    ],
    "ExposeHeaders": [
      "ETag"
    ]
  }
]

Optionally, you can configure a lifecycle rule to delete unfinished multipart uploads. I highly recommend you to do this as well since it prevents you from being charged unnecessarily.

  1. Go to Management section of your bucket and click Create lifecycle rule.
  2. Enter Lifecycle rule name (eg. "Delete incomplete multipart upload").
  3. Choose Limit the scope of this rule using one or more filters for rule scope.
  4. Enter videos/ as Prefix.
  5. Check Delete expired object delete markers or incomplete multipart uploads for Lifecycle rule actions.
  6. Check both Delete expired object delete markers and Incomplete multipart uploads
  7. Enter Number of days as you like (eg. 3).

DynamoDB

Next, create DynamoDB table so that when upload is finished, we can store the video information in the database.

  1. Go to the DynamoDB console and create table.
  2. Enter table name (eg. "aws-vod-streaming").
  3. Type id for Partition key.

IAM User

Once we created both S3 bucket and DynamoDB table, we need an AWS credentials for backend server to access these services. In AWS, to access certain services, we need a credentials of IAM user that has a permissions of those services.

  1. Go to IAM console and add user.
  2. Enter a User name (eg. "aws-vod-streaming").
  3. Select Access key - Programmatic access for AWS credential type.
  4. In Permissions tab, select Attach existing policies directly and create new policy for S3 bucket and DynamoDB table you've just created.
aws-vod-streaming-s3-source
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "VisualEditor0",
      "Effect": "Allow",
      "Action": [
        "s3:PutObject",
        "s3:GetObject",
        "s3:AbortMultipartUpload",
        "s3:DeleteObject",
        "s3:ListMultipartUploadParts"
      ],
      "Resource": "S3_SOURCE_BUCKET_ARN/*"
    }
  ]
}


aws-vod-streaming-dynamodb
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "VisualEditor0",
      "Effect": "Allow",
      "Action": [
        "dynamodb:PutItem",
        "dynamodb:DeleteItem",
        "dynamodb:GetItem",
        "dynamodb:Scan",
        "dynamodb:UpdateItem"
      ],
      "Resource": "DYNAMODB_TABLE_ARN"
    }
  ]
}

** Replace resource to your arn of S3 bucket and DynamoDB table.

Once you created user, copy Access key ID and Secret access key which we'll use in our server. Don't paste this key to your source code since it'll be exposed to your remote repository like Github. Best practice is to store this in .env file and use as environment variable.

Client (React)

Now we've done preparing AWS services, let's write some codes in client side. Inside frontend, all we need to do is create a function that takes a file as an argument and make a ajax call to the server.

Before initiate multipart upload, generate a video info to store in database later.

const uploadVideo = async (file: File, title: string) => {
  /**
   * Create Video Info
   */

  const videoInfo = await generateVideoInfo(file, title);
}


const generateVideoInfo = async (file: File, title: string) => {
  const videoDuration = await new Promise<number>((resolve) => {
    const video = document.createElement('video');

    video.onloadedmetadata = () => resolve(video.duration);
    video.src = URL.createObjectURL(file);
  });

  const videoInfo = {
    id: uuidv4(),
    title,
    fileName: file.name,
    fileSize: file.size,
    duration: videoDuration,
  };

  return videoInfo;
};

Then, make a ajax call to server to initiate a multipart upload. Server will send back you a uploadId which you need to upload parts.

// ...
const videoInfo = await generateVideoInfo(file, title);

/**
 * Initiate Multipart Upload
 */

const key = `${videoId}.${file.type.split('/')[1]}`;
const baseUrl = process.env.REACT_APP_SERVER_URL; // http://localhost:5000/api
const initiateResponse = await axios.post(`${baseUrl}/videos/upload`, {
  key,
  fileType: file.type,
});

const { uploadId } = initiateResponse.data;

Next, another api call to server to get presigned urls. After getting presigned urls, split the file into parts and upload them to S3.

// ...
const { uploadId } = initiateResponse.data;

/**
 * Upload Parts
 */

const partSize = 10 * 1024 * 1024; // 10MB
const partCount = Math.floor(file.size / partSize) + 1;

// get presigned urls for each parts
const getUrlResponse = await axios.put(
  `${baseUrl}/videos/upload/${uploadId}`,
  {
    key,
    partCount,
  }
);

const { presignedUrls } = getUrlResponse.data;
const uploadPartPromises: Promise<AxiosResponse>[] = [];

presignedUrls.forEach((presignedUrl: string, index: number) => {
  const partNumber = index + 1;
  const start = index * partSize;
  const end = partNumber * partSize;
  const blob =
    partNumber < partCount ? file.slice(start, end) : file.slice(start);

  const uploadPartPromise = axios.put(presignedUrl, blob, {
    onUploadProgress: uploadProgressHandler(partNumber, partCount),
    headers: { 'Content-Type': file.type },
  });

  uploadPartPromises.push(uploadPartPromise);
});

// upload parts to aws s3
const uploadPartResponses = await Promise.all(uploadPartPromises);
const uploadParts = uploadPartResponses.map(
  (uploadPartResponse, index) => ({
    ETag: uploadPartResponse.headers.etag,
    PartNumber: index + 1,
  })
);

Instead of waiting each parts to be uploaded, we can use Promise.all to process promises in parallel.

Also, you can track the progress of upload with onUploadProgress event handler.

const [uploadProgress, setUploadProgress] = useState(0);
const progressArray = useRef<number[]>([]);

const uploadProgressHandler = useCallback((index: number, count: number) => {
  return (event: ProgressEvent) => {
    if (event.loaded >= event.total) return;

    const currentProgress = Math.round(event.loaded * 100) / event.total;
    progressArray.current[index - 1] = currentProgress;
    const sum = progressArray.current.reduce((acc, cur) => acc + cur);
    const totalProgress = Math.round(sum / count);

    setUploadProgress(totalProgress);
  };
}, []);

Wait for parts upload to be finished, then complete the multipart upload. It'll return a url which is object key.

// ...
const uploadParts = uploadPartResponses.map(
  (uploadPartResponse, index) => ({
    ETag: uploadPartResponse.headers.etag,
    PartNumber: index + 1,
  })
);

/**
 * Complete Multipart Upload
 */

const completeResponse = await axios.post(`${baseUrl}/videos/upload/${uploadId}`, {
  key,
  parts: uploadParts,
});

const { url } = completeResponse.data;

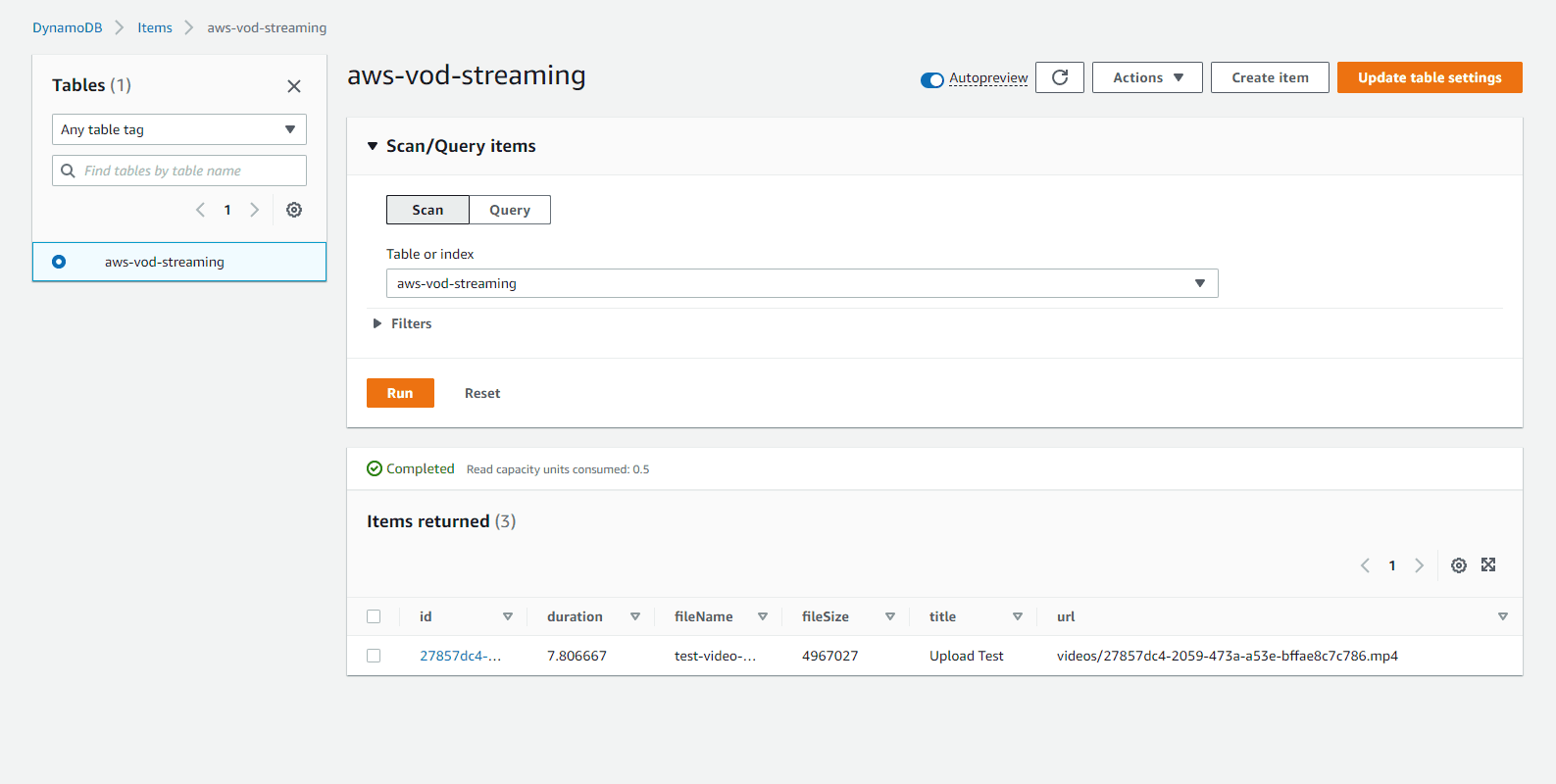

Finally, send a api call to store a video data in DynamoDB.

await axios.post(`${baseUrl}/videos`, {
  video: { ...videoInfo, url },
});

setUploadProgress(100);

Server (NodeJS)

In server side, first confgure a AWS settings with credentials. Use the access key id and secret access key of the user we created.

aws.ts
import AWS from 'aws-sdk';

AWS.config.update({
  credentials: {
    accessKeyId: process.env.AWS_ACCESS_KEY_ID!,
    secretAccessKey: process.env.AWS_SECRET_ACCESS_KEY!,
  },
});

export const s3 = new AWS.S3({
  region: process.env.AWS_S3_BUCKET_REGION!,
});

export const dynamoClient = new AWS.DynamoDB.DocumentClient({
  region: process.env.AWS_DB_TABLE_REGION!,
});

Then setup the server and routes for upload.

server.ts
import express from 'express';
import cors from 'cors';
import 'dotenv/config';

import videoRoute from './routes/video.route';

const PORT = 5000;

const app = express();

app.use(express.json());
app.use(cors());

app.use('/api/videos', videoRoute);

app.listen(PORT, () => {
  console.log(`Server running on port ${PORT}`);
});


video.routes.ts
import { Router } from 'express';

import {
  createVideoHandler,
  initiateUploadHandler,
  processUploadHandler,
  completeUploadHandler,
} from '../controllers/video.controller';

const router = Router();

router.post('/upload', initiateUploadHandler);
router.put('/upload/:uploadId', processUploadHandler);
router.post('/upload/:uploadId', completeUploadHandler);

router.post('/', createVideoHandler);

export default router;

We need three routes for multipart upload - initiation, parts upload, and completion, and one route for creating video data.

video.controller.ts
import { RequestHandler } from 'express';

import { createVideo } from '../services/video.service';
import {
  initiateMutlipart,
  processMultipart,
  completeMultipart,
} from '../services/upload.service';

export const initiateUploadHandler: RequestHandler = async (req, res) => {
  const { key, fileType } = req.body;

  const uploadData = await initiateMutlipart(fileType, key);

  res.json({ uploadId: uploadData.UploadId });
};

export const processUploadHandler: RequestHandler = async (req, res) => {
  const { key, partCount } = req.body;
  const { uploadId } = req.params;

  const presignedUrls = await processMultipart(uploadId, partCount, key);

  res.json({ presignedUrls });
};

export const completeUploadHandler: RequestHandler = async (req, res) => {
  const { key, parts } = req.body;
  const { uploadId } = req.params;

  const { Key } = await completeMultipart(uploadId, parts, key);

  res.status(201).json({ url: Key });
};

export const createVideoHandler: RequestHandler = async (req, res) => {
  const { video } = req.body;

  await createVideo(video);

  res.status(201).json({ message: 'Video created successfully' });
};

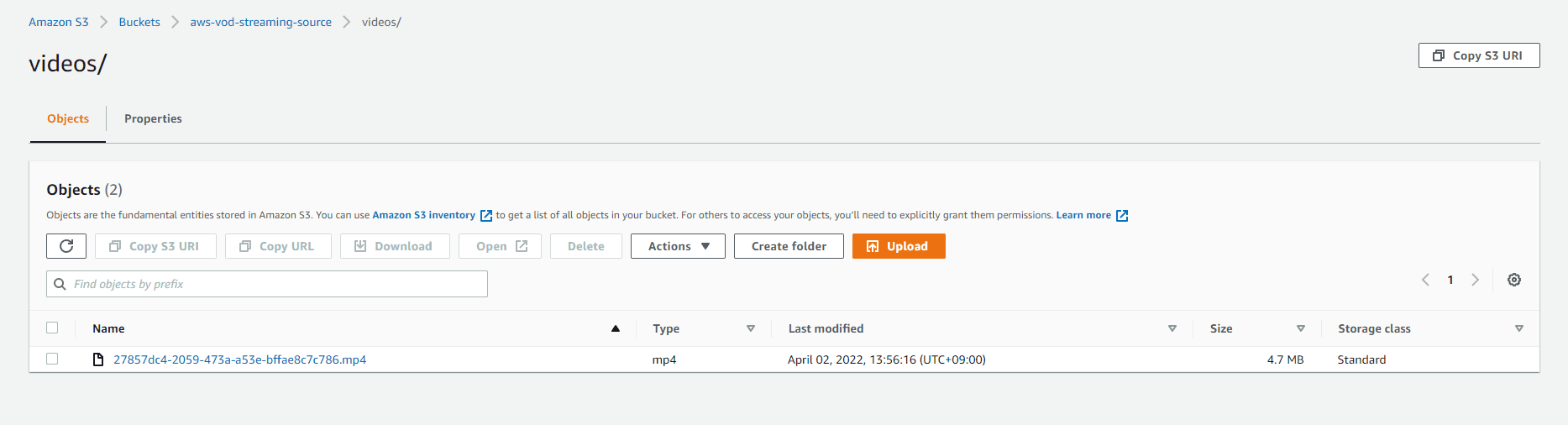

We'll store all the videos in videos/ prefix. In AWS S3, you can simulate folder structure by splitting path with /.

upload.service.ts
import { s3 } from '../config/aws';

export const initiateMutlipart = async (fileType: string, key: string) => {
  const params = {
    Bucket: process.env.AWS_S3_BUCKET_NAME!,
    Key: `videos/${key}`,
    ContentType: fileType,
  };

  return await s3.createMultipartUpload(params).promise();
};

export const processMultipart = async (
  uploadId: string,
  partCount: number,
  key: string
) => {
  const params = {
    Bucket: process.env.AWS_S3_BUCKET_NAME!,
    Key: `videos/${key}`,
    UploadId: uploadId,
  };

  const presignedUrlPromises: Promise<string>[] = [];

  for (let index = 0; index < partCount; index++) {
    presignedUrlPromises.push(
      s3.getSignedUrlPromise('uploadPart', { ...params, PartNumber: index + 1 })
    );
  }

  // Get presigned urls
  const presignedUrls = await Promise.all(presignedUrlPromises);

  return presignedUrls;
};

export const completeMultipart = async (
  uploadId: string,
  parts: { ETag: string; PartNumber: number }[],
  key: string
) => {
  const params = {
    Bucket: process.env.AWS_S3_BUCKET_NAME!,
    Key: `videos/${key}`,
    UploadId: uploadId,
    MultipartUpload: { Parts: parts },
  };

  return await s3.completeMultipartUpload(params).promise();
};


video.service.ts
import { dynamoClient } from '../config/aws';

interface Video {
  id: string;
  title: string;
  description: string;
  fileName: string;
  fileSize: number;
  duration: number;
  url: string;
}

const TABLE_NAME = process.env.AWS_DB_TABLE_NAME!;

export const createVideo = async (video: Video) => {
  const params = {
    TableName: TABLE_NAME,
    Item: video,
  };

  return await dynamoClient.put(params).promise();
};

The reason we don't store entire domain in url is that, there might be a circumstance that needs a migration to different storage solution in the future.

Testing

After testing with all these codes, you can find a video file uploaded to your S3 bucket successfully as well as an item created in DynamoDB.

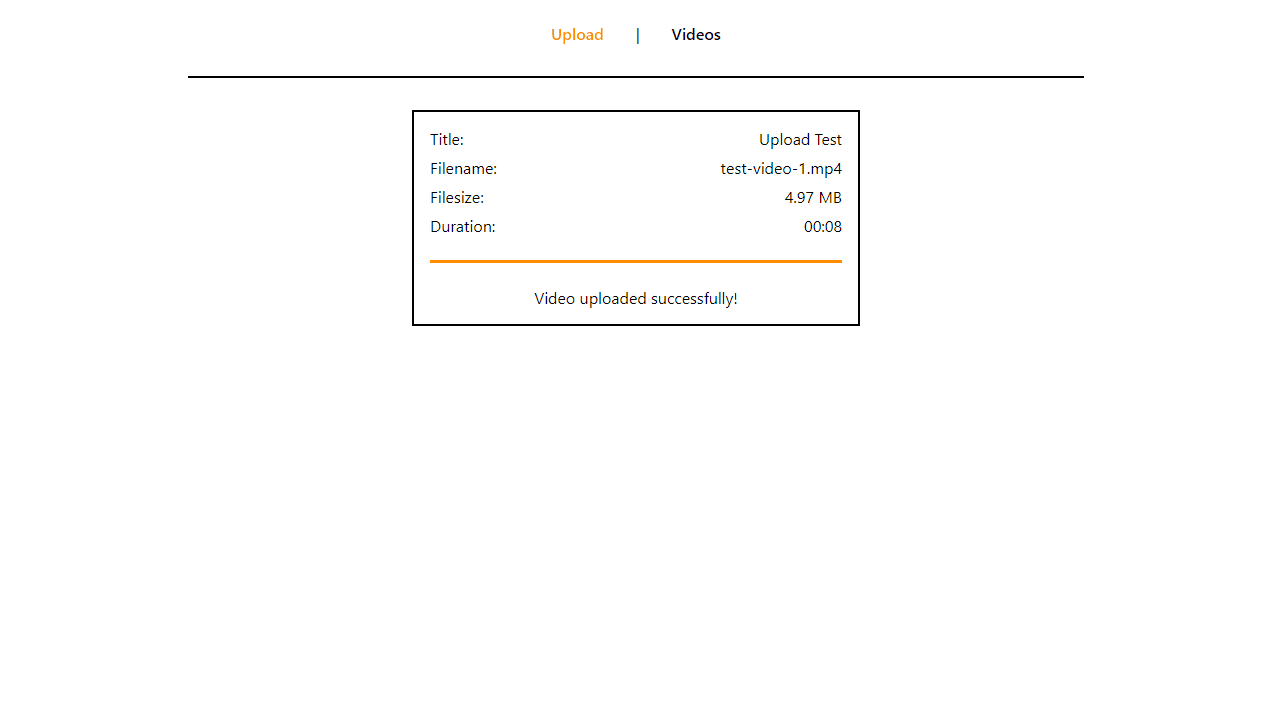

Uploading from demo app
Uploading from demo app
S3 source bucket
S3 source bucket
DynamoDB table
DynamoDB table

Conclusion

That was the first part of building VOD streaming service. We've handled video upload with combination of multipart upload and presigned url.

In the next section, we'll transcode uploaded video into adaptive media format. We can automate this process using other AWS services such as Lambda and MediaConvert.

You can find the source code of this tutorial in here.
