Dealing with a Tree Data Structure with NodeJS and MongoDB

Dealing with a Tree Data Structure with NodeJS and MongoDB

In the previous post, we built a tree data in a frontend app with React and Redux. We can dynamically create, update, and remove nodes inside the tree.

Now we want to send this data to a backend app and store it in a database so that we can retrieve it later. Therefore, in this post, we'll build an API server that can handle this tree data using NodeJS and MongoDB.

Overview

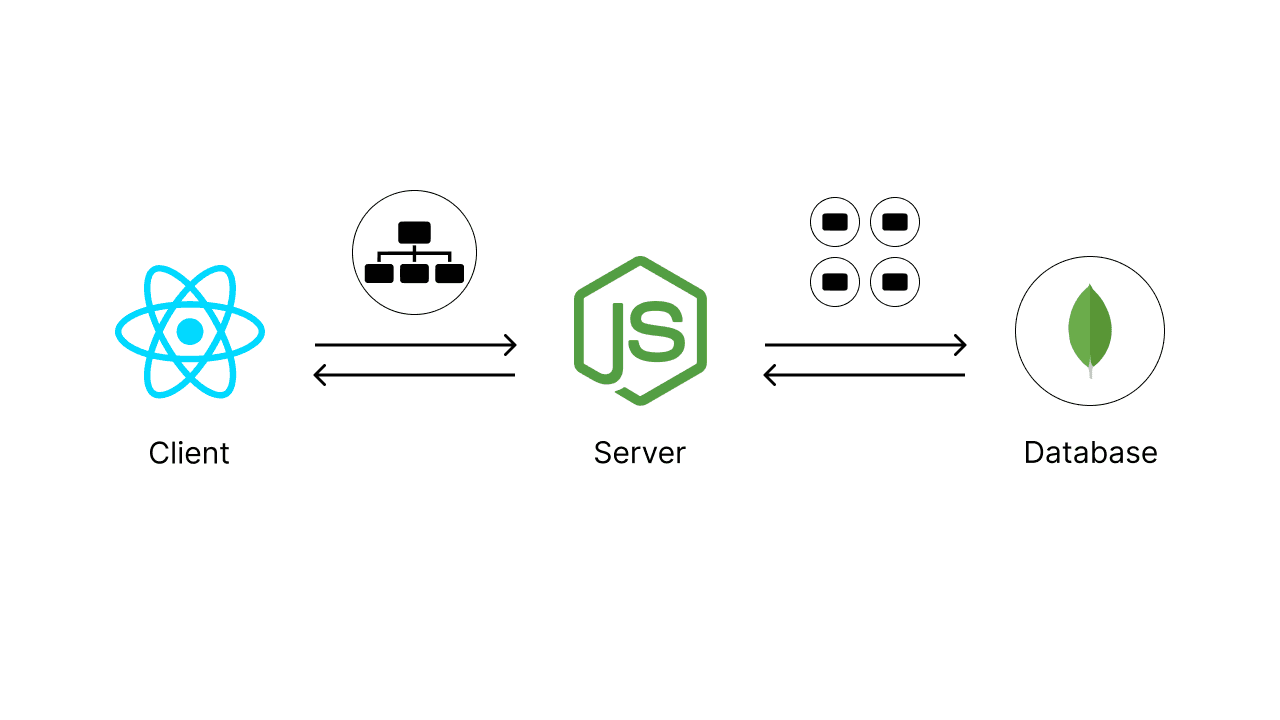

Here's a workflow of how the server will work:

overview-1

When storing a data into database, It receives tree data from client. It splits the tree into nodes and stores them in the Node Collection. Then, it stores tree document in the Tree Collection with the reference to the root node.

When retrieving the data from database, the server fetches node documents from the node collection and join with tree document. Then it returns the merged tree to the client.

In this post, we'll create endpoints for GET, PUT, and DELETE methods.

overview-2

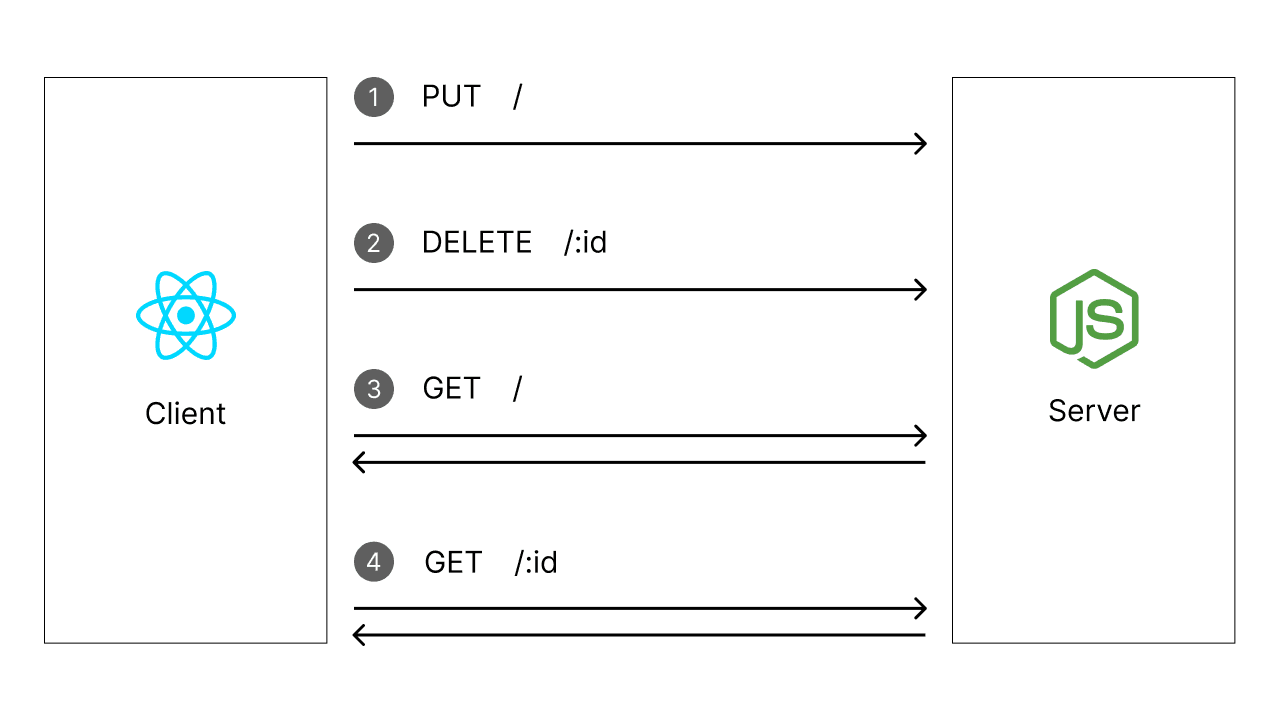

  1. The PUT route will create a new tree document and node documents if not exist. If already exist, it will update them.
  2. The DELETE route will delete the tree document and every node documents related.
  3. One GET route will return an array of tree documents with a root node included
  4. Another GET route will return a single tree document with every nodes included.

Get Started

To start, run following commands in your terminal of the new project folder to install necessary packages and setup a project. We'll use a typescript for this project.

# Create a package.json file
npm init -y

# Install libraries for this project
npm install express cors dotenv mongoose

# Install dependencies for typescript and development workflow
npm install -D @types/express @types/cors @types/node nodemon ts-node typescript

# Create a tsconfig.json file
tsc --init

Before moving on to project setup, you can find a source code of the frontend app here in case you skipped the previous post. You can also find a finished project of this post here.

Basic Setup

Let's begin with typescript setup. Add following configuration in the tsconfig.json file.

tsconfig.json
{
  "compilerOptions": {
    // ...
    "rootDir": "./src",
    "outDir": "./dist",
  },
  "include": [
    "src",
  ],
  "exclude": [
    "**/node_modules",
    "**/.*/"
  ]
}

Create a src folder in your project directory. Every source codes should be written inside this folder.

Therefore, create a server.ts in the src folder to start an express server.

src/server.ts
import express from 'express';
import cors from 'cors';
import 'dotenv/config';

const PORT = 5000;

const app = express();

app.use(express.json());
app.use(cors());

app.listen(PORT, async () => {
  console.log(`Server running on port ${PORT}`);
});

The app needs to receive JSON data from the request body. The express.json() middleware will parse the body for you.

By default, this method limits the size of request body to 100kb. You can increase this size in case you expect a very large tree data from client.

You also should use cors() middleware to allow origin of the frontend app. It will allow all origins by default.

The app will be running on http://localhost:5000. To test it, go to package.json file and add following lines in scripts field.

package.json
"scripts": {
  "build": "tsc",
  "start": "node dist/server.js",
  "dev": "nodemon src/server.ts"
},

Now run npm run dev in the terminal. If you can see the console log in your terminal, you're good to go.

Next, we need to connect to MongoDB database.

src/config/db.ts
import mongoose from 'mongoose';

export const connectDB = async () => {
  const connection = await mongoose.connect(process.env.MONGODB_URI!);

  console.log('MongoDB connected');

  return connection;
};

Create a .env file in the root directory and type a connection string of your cluster. You need to import dotenv/config module in your app to utilize the .env file.

With that, let's modify the server.ts to connect to database before initialization.

src/server.ts
import express from 'express';
import cors from 'cors';
import 'dotenv/config';

import { connectDB } from './config/db';

const PORT = 5000;

const app = express();

app.use(express.json());
app.use(cors());

const initiateServer = async () => {
  await connectDB();

  app.listen(PORT, async () => {
    console.log(`Server running on port ${PORT}`);
  });
};

initiateServer();

Then, create a route to receives requests with multiple endpoints.

src/controllers/tree.controller.ts
import express from 'express';

const router = express.Router();

router.get('/', async (req, res) => {
  res.json('test');
});

export default router;


src/server.ts
import treeController from './controllers/tree.controller';

// ...

app.use(express.json());
app.use(cors());

app.use('/api/trees', treeController);

Finally, if you want to test the API along with, modify some codes of your frontend app like below so that you can easily test the API:

components/Tree/index.tsx
// This is a frontend app built in the previous post!

const submitTreeHandler = async () => {
  const response = await fetch('http://localhost:5000/api/trees', {
    method: 'PUT',
    body: JSON.stringify({ tree }),
    headers: { 'Content-Type': 'application/json' },
  });

  const data = await response.json();

  alert(data.message);
};

const removeTreeHandler = async () => {
  const response = await fetch(`http://localhost:5000/api/trees/${tree.root.id}`, {
    method: 'DELETE',
    headers: { 'Content-Type': 'application/json' },
  });

  const data = await response.json();

  alert(data.message);
  dispatch(treeActions.deleteTree());
};

Alternatively, you can use this example tree with a tool like Postman.

That's all for the preparation. Let's move on to build main logics.

Define Models

A tree is large hierarchical data type which is composed of nested data relationships. Here's a review of type definition for tree we created in the previous post:

export interface Tree {
  root: Node;
  info: { name: string; description: string };
}

export interface Node {
  id: string;
  parentId: string | null;
  level: number;
  info: { name: string; description: string };
  children: Node[];
}

How should we store this tree object? This is an example tree data that we're expecting to receive from client app. As you can see, it is quite large data even though child nodes of it are not that many.

When storing a data into the database, maintaining a data in a one large document is a pretty bad practice. Even though MongoDB supports embedded data models, storing large documents can lead to excessive RAM and bandwidth usage, as well as bad performance.

Also, MongoDB has a limitation in size of document, which is 16MB with a nested depth of 100 levels. This leads to another problem of data scaling.

Therefore, we need to split the large tree data into multiple node documents and only store reference with node identifier.

Splitting Tree

MongoDB provides a guide to use tree data structures in various ways. Here are the solutions:

  1. Model tree structures with parent references
  2. Model tree structures with child references
  3. Model tree structures with an array of ancestors
  4. Model tree structures with materialized paths

We'll use the first solution since we already have parentId property in the node object. With that, let's create models for both tree and node.

Tree Type & Schema

In the frontend app, we stored the entire root node inside the root property of tree. This time, we'll only store id of the root node instead.

src/models/tree.model.ts
export interface Tree {
  root: string;
  info: { name: string; description: string };
}

We can define a schema and model of it like below:

src/models/tree.model.ts
import { Schema, model } from 'mongoose';

const treeSchema = new Schema<Tree>({
  root: { type: String, required: true, unique: true, ref: 'Node' },
  info: {
    name: { type: String },
    description: { type: String },
  },
});

export const TreeModel = model<Tree>('Tree', treeSchema);

Since the root property is unique string type, we can use it as a primary key when querying, instead of auto generated _id field. Mongoose automatically creates a index for fields that have unique: true option.

Node Type & Schema

For modeling a node, I mentioned earlier that we'll use a parent references way to make a connection between node documents. It means that we only need to store a references of parent node.

Here's a type of node:

src/models/node.model.ts
export interface Node {
  id: string;
  parentId: string | null;
  level: number;
  info: { name: string; description: string };
}

You can see that we no longer need a children property. We'll implement how to retrieve child nodes from this referene later in this post.

The schema of node should be like:

src/models/node.model.ts
const nodeSchema = new Schema<Node>({
  id: { type: String, required: true, unique: true },
  parentId: { type: String, default: null, ref: 'Node' },
  level: { type: Number, required: true },
  info: {
    name: { type: String },
    description: { type: String },
  },
});

export const NodeModel = model<Node>('Node', nodeSchema);

Define DTO Type

We're almost done modeling a tree. Before diving into CRUD operation logics, we also need to define types for client side data. Because our API should ultimately receive and return a tree data in a form of we defined in frontend app, and the data is inconsistent with the types we defined.

Therefore, let's call theses types as DTO types which refers to Data Transfer Object.

src/models/tree.model.ts
export interface TreeDto extends Omit<Tree, 'root'> {
  root: NodeDto;
}


src/models/node.model.ts
export interface NodeDto extends Node {
  children: NodeDto[];
}

Create & Update Data

Normally, when creating a rest API, we split create and update job into different routes. And the http method is usually POST and PATCH for each route.

However, in this project, due to the workflow that the whole tree data is created and updated in the client side, it would be much simpler to combine this two job into one upsert job with PUT method.

Also, we'll handle both tree and node documents in this one route because it keeps tree and node integrated and only needs one http request for updating every nodes inside the tree.

Therefore, the request handler for this PUT method will look like this:

src/controllers/tree.controller.ts
import * as TreeService from '../services/tree.service';
import * as NodeService from '../services/node.service';

// ...

router.put('/', async (req, res) => {
  const { tree } = req.body;

  await TreeService.upsert(tree);
  await NodeService.upsertByTree(tree);

  res.json({ message: 'Updated tree and nodes' });
});

It should receive a tree as a request body.

Upsert a Tree Document

Let's begin with tree document. To make an upsert job, we should validate if the tree already exists.

Remember that the tree we get from the client is TreeDto type instead of Tree that we defined to create schema.

We should find a tree with root field since it is unique for every tree and more importantly, we don't expect the TreeDto to have _id field.

src/services/tree.service.ts
import { TreeDto, TreeModel } from '../models/tree.model';

export const upsert = async (treeDto: TreeDto) => {
  const treeDocument = await TreeModel.findOne({ root: treeDto.root.id });
};

If the tree doesn't exist, create a new one, or, update the info field. Make sure to modify root field when creating a new document because it should only store the reference of the root node.

src/services/tree.service.ts
export const upsert = async (treeDto: TreeDto) => {
  const treeDocument = await TreeModel.findOne({ root: treeDto.root.id });

  if (!treeDocument) {
    const newTree = new TreeModel({ ...treeDto, root: treeDto.root.id });
    return await newTree.save();
  }

  treeDocument.info = { ...treeDocument.info, ...treeDto.info };

  return await treeDocument.save();
};

Upsert Node Documents

Upserting a node document needs more process than tree. Since the TreeDto we receive will contain a number of nodes, we need to handle them into a batch operation for better performance. In MongoDB, there is a method called bulkwrite that can combine insertMany, updateMany, and deleteMany.

We can divide this process into 4 steps:

  1. Find every nodes that related to TreeDto in the database.
  2. Compare nodes of the TreeDto with saved nodes. We can validate the status of each node as "created", "updated", and "deleted".
  3. Create a job for each node depending on the status.
  4. Batch jobs with a single bulkwrite operation.
src/services/node.service.ts
export const upsertByTree = async (treeDto: TreeDto) => {
  // Find nodes

  // Validate nodes

  // Make different jobs for the status of nodes

  // Batch jobs with a single operation
};

Find Nodes with Aggregation

As mentioned before, we're using parent references with parentId field to connect the nodes. In MongoDB, we can join documents with aggregation pipeline. For searching a tree nodes, we can use $graphLookup stage.

src/services/node.service.ts
export const findByTree = async (rootId: string) => {
  const result = await NodeModel.aggregate([
    { $match: { id: rootId } },
    {
      $graphLookup: {
        from: 'nodes',
        startWith: '$id',
        connectFromField: 'id',
        connectToField: 'parentId',
        as: 'children',
      },
    },
  ]);
};

The $graphLookup performs a recursive search on a collection. In above function, it'll find nodes that parentId is matched against id field. Every nodes that matched against this stage will be stored in children field.

Optionally, you can add restrictSearchWithMatch field to specify additional conditions for search. You can see a full documentation of $graphLookup here.

The output of this aggregation will be Node with a children field of Node[]. For a solid type checking, let's define another type for this result.

src/models/node.model.ts
export interface NodeAggregateResult extends Node {
  children: Node[];
}

Note that it is not same with NodeDto whose children field is NodeDto[].

src/models/node.model.ts
const result = await NodeModel.aggregate<NodeAggregateResult>([
  // ...
]);

Let's tweak the result because we want to return nodes in a form of array.

src/services/node.service.ts
export const findByTree = async (rootId: string) => {
  const result = await NodeModel.aggregate<NodeAggregateResult>([
    { $match: { id: rootId } },
    {
      $graphLookup: {
        from: 'nodes',
        startWith: '$id',
        connectFromField: 'id',
        connectToField: 'parentId',
        as: 'children',
      },
    },
  ]);

  const rootWithNodes = result[0];
  const nodes = rootWithNodes ? [rootWithNodes, ...rootWithNodes.children] : [];

  return nodes; // Node[]
};


src/services/node.service.ts
export const upsertByTree = async (treeDto: TreeDto) => {
  const prevNodes = await findByTree(treeDto.root.id);
};

We also need to convert the TreeDto into a array the nodes. For that, we can traverse the tree with while loop like below:

src/util/tree.ts
export const traverseNodes = (root: NodeDto) => {
  let currentNode = root;
  const queue: NodeDto[] = [];
  const nodes: NodeDto[] = [];

  queue.push(currentNode);

  while (queue.length) {
    currentNode = queue.shift()!;

    nodes.push(currentNode);

    if (currentNode.children.length) {
      currentNode.children.forEach((child) => queue.push(child));
    }
  }

  return nodes;
};


src/services/node.service.ts
export const upsertByTree = async (treeDto: TreeDto) => {
  const prevNodes = await findByTree(treeDto.root.id);
  const newNodes = traverseNodes(treeDto.root);
};

Compare New Nodes and Old Nodes

Now we need to compare them to identify what changes has been made between them.

If the node only exists in prevNodes, it must be deleted. On the other hand, if the node only exists in newNodes, it is newly created node. Finally, if the node exists in both group, its info field should be updated.

src/services/node.service.ts
export const upsertByTree = async (treeDto: TreeDto) => {
  const prevNodes = await findByTree(treeDto.root.id);
  const newNodes = traverseNodes(treeDto.root);

  // Find created nodes
  const createdNodes = newNodes.filter(
    (newNode) => !prevNodes.some((prevNode) => newNode.id === prevNode.id)
  );
  // Find updated nodes
  const updatedNodes = newNodes.filter((newNode) =>
    prevNodes.some((prevNode) => newNode.id === prevNode.id)
  );
  // Find deleted nodes
  const deletedNodes = prevNodes.filter(
    (prevNode) => !newNodes.some((newNode) => newNode.id === prevNode.id)
  );
};

Create a Job for Each Node

Depending on the status of nodes, we should create insert, update, and delete job for the bulkwrite operation.

src/services/node.service.ts
const _getInsertJobs = (nodes: (Node | NodeDto)[]) => {
  const insertBulk = nodes.map((node) => ({
    insertOne: { document: node },
  }));

  return insertBulk;
};

const _getUpdateJobs = (nodes: (Node | NodeDto)[]) => {
  const updateBulk = nodes.map((node) => ({
    updateOne: {
      filter: { id: node.id },
      update: { $set: { info: node.info } },
    },
  }));

  return updateBulk;
};

const _getDeleteJobs = (nodes: (Node | NodeDto)[]) => {
  const deleteBulk = [
    {
      deleteMany: {
        filter: { id: { $in: nodes.map((node) => node.id) } },
      },
    },
  ];

  return deleteBulk;
};

You can find a instruction of the bulkwrite operation in MongoDB documentation.

Batch Multiple Jobs

After creating jobs for every nodes, push it into a single array so that it can be passed to bulkwrite as an argument. The final shape of the function will be like below:

src/services/node.service.ts
export const upsertByTree = async (treeDto: TreeDto) => {
  const newNodes = traverseNodes(treeDto.root);
  const prevNodes = await findByTree(treeDto.root.id);

  // Find created nodes
  const createdNodes = newNodes.filter(
    (newNode) => !prevNodes.some((prevNode) => newNode.id === prevNode.id)
  );
  // Find updated nodes
  const updatedNodes = newNodes.filter((newNode) =>
    prevNodes.some((prevNode) => newNode.id === prevNode.id)
  );
  // Find deleted nodes
  const deletedNodes = prevNodes.filter(
    (prevNode) => !newNodes.some((newNode) => newNode.id === prevNode.id)
  );

  const bulkJobs: any[] = [];

  if (createdNodes.length) {
    bulkJobs.push(..._getInsertJobs(createdNodes));
  }
  if (updatedNodes.length) {
    bulkJobs.push(..._getUpdateJobs(updatedNodes));
  }
  if (deletedNodes.length) {
    bulkJobs.push(..._getDeleteJobs(deletedNodes));
  }

  return await NodeModel.bulkWrite(bulkJobs);
};

You might notice that we are passing NodeDto into insert job which has children property unlike the Node schema we defined. However, it will be stored properly without the children property as we defined.

You should also note that the bulkwrite method does not trigger Mongoose middlewares and therefore it's not a best practice that Mongoose documentation recommends. This is a trade-off for the performance we get.

Delete Data

A process of deleting tree and node will be similar to the upsert job. First, we delete the tree document, then find all nodes belong to the tree and delete them.

src/controllers/tree.controller.ts
router.delete('/:rootId', async (req, res) => {
  const { rootId } = req.params;

  await TreeService.remove(rootId);
  await NodeService.removeByTree(rootId);

  res.json({ message: 'Removed tree and nodes' });
});

This time, we receive rootId of the tree from the request params.

Delete a Tree Documnent

Deleting tree is very simple. Find the tree if it is exists, them remove it.

src/services/tree.service.ts
export const remove = async (rootId: string) => {
  const treeDocument = await TreeModel.findOne({ root: rootId });

  if (!treeDocument) {
    return;
  }

  return await treeDocument.remove();
};

Delete Node Documents

To delete nodes, we can reuse the functions already created for upsert job.

First, find every nodes belong to the tree with $graphLookup aggregation, create a delete job for batch operation, then call bulkwrite.

src/services/node.service.ts
export const removeByTree = async (rootId: string) => {
  const prevNodes = await findByTree(rootId);
  const deleteBulk = _getDeleteJobs(prevNodes);

  return await NodeModel.bulkWrite(deleteBulk);
};

Get Data

To retrieve saved tree data, we'll create two routes. One for fetching multiple trees with only the root node attached, and one for fetching a single tree with all nodes attached.

This is a general use of API when fetching a data. Usually when fetching multiple documents, it is unlikely to need detail information about the document, and this is why we split the tree into multiple node documents.

src/controllers/tree.controller.ts
router.get('/', async (req, res) => {
  const trees = await TreeService.findWithRoot();

  res.json({ trees });
});

router.get('/:rootId', async (req, res) => {
  const { rootId } = req.params;

  const tree = await TreeService.findOneWithNodes(rootId);

  res.json({ tree });
});

Get Multiple Trees with Root

To fetch a tree with a root node, we have to query two documents from different collections. For that, we can use join with another aggregation pipeline: $lookup.

Again, we're actively leveraging the MongoDB aggregation since it is more performant than querying documents seperately. Although Mongoose provides populate() method to join documents, it just makes seperate queries in the background and therefore not as performant as $lookup.

src/services/tree.service.ts
export const findWithRoot = async () => {
  return await TreeModel.aggregate<TreeDto>([
    {
      $lookup: {
        from: 'nodes',
        localField: 'root',
        foreignField: 'id',
        as: 'root',
      },
    },
    { $unwind: '$root' },
  ]);
};

The $lookup stage will return an array that contains root node in the root field. To make this array into a single object, we can use $unwind stage. Then the final result will be the form of TreeDto[].

Get a Single Tree with Nodes

We only left final route. This time, we also need to fetch every nodes belong to the root. Of course, we can achieve it in a single aggregation pipeline. All we need to do is to combine $lookup and $graphLookup stage.

src/services/tree.service.ts
export const findOneWithNodes = async (rootId: string) => {
  const result = await TreeModel.aggregate([
    { $match: { root: rootId } },
    {
      $lookup: {
        from: 'nodes',
        let: { root: '$root' },
        as: 'root',
        pipeline: [
          { $match: { $expr: { $eq: ['$$root', '$id'] } } },
          {
            $graphLookup: {
              from: 'nodes',
              startWith: '$id',
              connectFromField: 'id',
              connectToField: 'parentId',
              as: 'children',
            },
          },
        ],
      },
    },
    { $unwind: '$root' },
  ]);
};

You can build a custom pipeline inside $lookup query with pipeline property instead of localField and foreignField. For that, we need to specify variables in let field to access local field from inside the pipeline. Note that a $match stage requires the use of $expr operator to access variables.

To see more detail about $lookup stage, check out MongoDB documentation.

The result of this aggregation can be defined as below:

src/models/tree.model.ts
export interface TreeAggregateResult extends Omit<Tree, 'root'> {
  root: NodeAggregateResult;
}


src/services/tree.service.ts
const result = await TreeModel.aggregate<TreeAggregateResult>([
  // ...
]);

As a final process, we need to convert this result into TreeDto. Here's a utility function that builds a tree from an array of nodes.

src/util/tree.ts
export const buildTree = (nodes: Node[]) => {
  const map: { [key: string]: number } = {};
  let root: NodeDto = {
    id: '',
    parentId: null,
    level: 0,
    info: { name: '', description: '' },
    children: [],
  };

  const nodeDtos: NodeDto[] = nodes.map((node, index) => {
    map[node.id] = index;
    const nodeDto = { ...node, children: [] };

    return nodeDto;
  });

  nodeDtos.forEach((node) => {
    if (node.parentId) {
      nodeDtos[map[node.parentId]].children.push(node);
    } else {
      root = node;
    }
  });

  return root;
};
  1. Receive Node[] as an argument and create initial map object and root node.
  2. Map through nodes argument. Set the map with the key of node id and value of index. Then return a NodeDto[].
  3. For each node in the NodeDto[], if it has parentId, push itself into the children property of parent node using the map opject.
  4. If it doesn't have parentId, it is the root node which will be finally returned.

With that, we can return a TreeDto like below:

src/services/tree.service.ts
export const findOneWithNodes = async (rootId: string) => {
  const result = await TreeModel.aggregate<TreeAggregateResult>([
    { $match: { root: rootId } },
    {
      $lookup: {
        from: 'nodes',
        let: { root: '$root' },
        as: 'root',
        pipeline: [
          { $match: { $expr: { $eq: ['$$root', '$id'] } } },
          {
            $graphLookup: {
              from: 'nodes',
              startWith: '$id',
              connectFromField: 'id',
              connectToField: 'parentId',
              as: 'children',
            },
          },
        ],
      },
    },
    { $unwind: '$root' },
  ]);

  if (!result.length) {
    return null;
  }

  const treeWithNodes = result[0];
  const nodes = [treeWithNodes.root, ...treeWithNodes.root.children];
  const root = buildTree(nodes);

  const treeDto: TreeDto = { ...treeWithNodes, root };

  return treeDto;
};

Conclusion

That's all for handling a tree data structure with NodeJS and MongoDB! You can review the source code in here.
